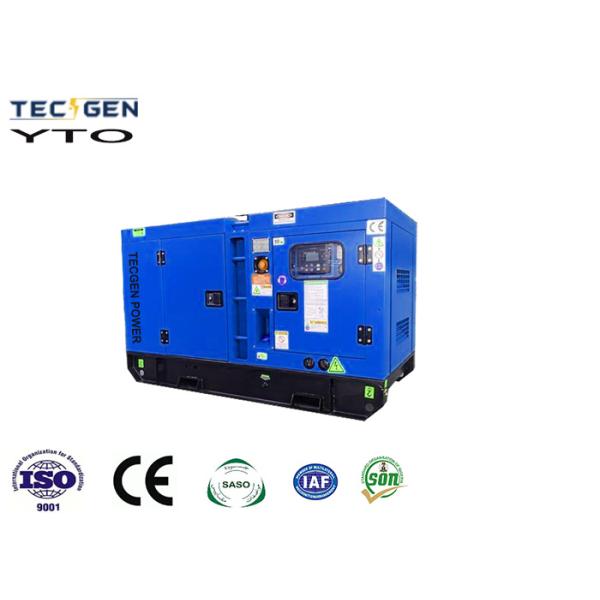

3 Cylinder 30kW diesel engine genset silent YTO generators with Leroy Somer alternator
Product Description: 3 Cylinder 30kW Diesel Engine Genset - Silent YTO Generators
Standard Features:
Introducing our premium 3 Cylinder 30kW Diesel Engine Genset, crafted with the latest technology to ensure reliable power backup for all your industrial and commercial needs. Equipped with a silent enclosure made from galvanized steel plate, this generator operates with minimal noise disturbance, making it the ideal choice for noise-sensitive environments. The YTO diesel engine, model YT3A2Z-D, boasts a rated power of 38kW and a displacement of 3.12L, providing a robust and efficient power output.
Key Features:
- Silent Operation: With a soundproof canopy, our Silent YTO Generators ensure quiet performance, ideal for hospitals, schools, and residential areas.
- Turbo-Charged Engine: The turbo-charged YTO diesel engine delivers exceptional power and fuel efficiency, operating at 1500rpm for smooth and consistent power generation.
- High-Quality Alternator: The Leroy Somer TAL-A42-E alternator guarantees stable three-phase, four-wire output at 230/400V, 50Hz, with a power factor of 0.8.
- Advanced Control System: Integrated with the DEIF SGC-420 controller, it offers comprehensive monitoring and protection features, including AMF module, automatic battery charging, and emergency stop functionality.
- Safety & Durability: Features include a 63A Delixi breaker, dry-type filters, and a ripple flex exhaust system, ensuring long-term reliability and operator safety.
3 Cylinder 30kW Diesel Engine Genset Specifications:
| 3 Cylinder 30kW Diesel Engine Genset Details |
| Genset | Type | Silent |
| Model | TG41YTS |
| Frequency | 50Hz |
| Speed | 1500rpm |
| Voltage | 230/400V |
| Phase | Three Phase |
| Prime Power | 38kVA / 30kW |
| Standby Power | 41kVA / 33kW |
| Rate Current | 54.1A |
| Breaker | 63A Delixi Breaker |
| Dimensions | L2250 x W1000 x H1180mm |
| Weight | 950kgs |
| Fuel Capacity | 90L |
| General Features |
| Engine | YTO | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Leroy Somer | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| YTO Diesel Engine Technical Data |
| Brand | YTO |
| Engine Model | YT3A2Z-D |
| Rated Power | 38kW |
| Cylinder | 3 Cylinder |
| Bore*Stroke | 105*120mm |
| Displacement | 3.12L |
| Aspiration | Turbo-charged |
| Speed | 1500rpm |
| Cooling System | Water Cooled |
| Fuel Consumption at 100% Load | 8.6L |
| Speed Governor | Electric |
| Start System | 12/24V Electric Starter |
| Option Engine Brands |
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC |
| AC Alternator Technical Data |
| Brand | Leroy Somer |
| Alternator Model | TAL-A42-E |
| Rated Power | 30kW |
| Speed | 1500rpm |
| Frequency | 50Hz |
| Phase | Three Phase, Four Wire |
| Power Factor | 0.8 |
| Exciter type | Single bearing, brushless, Self-excited |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Option Alternator Brands |
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen |
| Controller System |
| Brand | DEIF |
| Model | SGC-420 |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection & RS485 & CANbus & PLS & BTS Functions |
| Alarms | Over and Under Speed |
| Low and High Battery Voltage |
| Start and Stop Failure |
| Charge Fail |
| Over Current |
| Under / Over Generator Voltage |
| Low Oil Pressure |
| Emergency Stop |
| High Engine Temperature |
| Over Load |
| OPTIONAL EQUIPMENTS |
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
Our 3 Cylinder 30kW Diesel Engine Genset is perfect for powering critical loads in a wide range of applications, including emergency backup for hospitals, data centers, construction sites, and remote locations. Its robust design and silent operation make it a versatile solution for both short-term and long-term power requirements.
Advantages:
- Flexibility: Offers prime power of 30kW and standby power of 33kW, suitable for various load demands.
- Fuel Efficiency: With a fuel consumption of 8.6L at 100% load, it minimizes operational costs.
- Ease of Maintenance: Varta maintenance-free batteries and accessible service points ensure hassle-free upkeep.
- Portable & Compact: Compact dimensions (L2250 x W1000 x H1180mm) and a weight of 950kgs make it easy to transport and install.
- Eco-Friendly: Complies with stringent emission standards, reducing environmental impact.
Options:
- Choose from a variety of optional engine brands, including Cummins, Perkins, and Yanmar, to suit your specific requirements.
- Upgrade to a parallel panel for increased power output or a remote control panel for convenient operation.
- Add an engine heater, water heater, or a permanent magnet generator (PMG) for enhanced performance in extreme conditions.
FAQs:
- Q: What is the maximum noise level of this generator?
A: The Silent YTO Generators feature a soundproof canopy that significantly reduces noise, ensuring minimal disturbance to the surroundings. - Q: Can this generator be customized to suit my specific needs?
A: Yes, we offer various options and customizations, including different engine brands, control panels, and accessories to fit your unique requirements. - Q: How long can the generator run on a full tank of fuel?
A: Depending on the load, the 90L fuel tank can provide up to 24 hours of continuous operation, ensuring uninterrupted power supply.
Experience the reliability and efficiency of our 3 Cylinder 30kW Diesel Engine Genset - Silent YTO Generators. With its combination of advanced features, silent operation, and flexible options, it's the perfect solution for all your power backup needs. Order now and enjoy the peace of mind that comes with having a dependable power source.
