FAWDE Diesel Generator 41kVA Chinese Diesel Engine Generator With Brushless Alternator

Product Categories
FUJIAN TECGEN POWER CO., LTD.
Contact Now

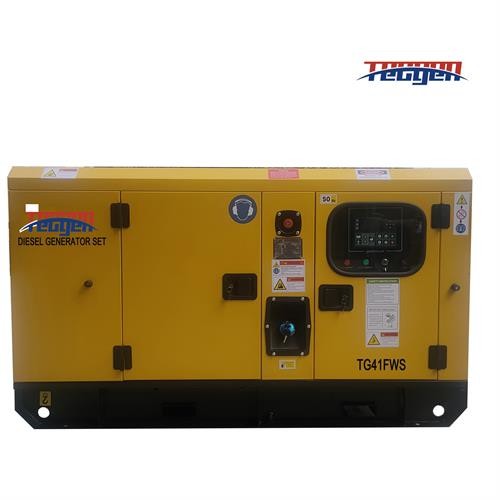

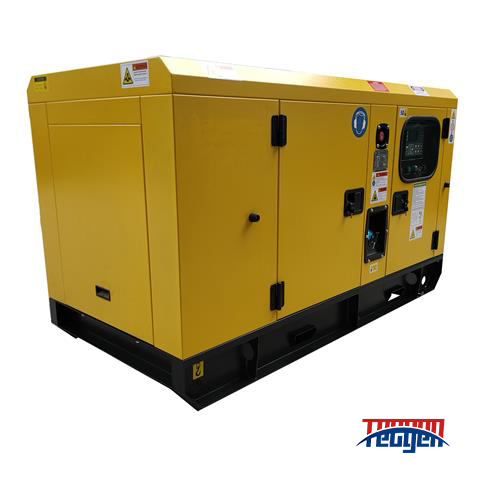

FAWDE Diesel Generator 41kVA Chinese Diesel Engine Generator With Brushless Alternator

  • 1
  • 2
  • 3

Brand Name : Tecgen Power

Model Number : TG41FWS

Certification : CE / SASO / SONCAP / COC / PVOC

Place of Origin : Fuzhou, China

MOQ : One Set

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 200 Units Per Month

Delivery Time : 7 - 15 Working Days

Packaging Details : Stretch film packaging

Brand : FAWDE Diesel Generator

Type of unit : Silent / Super Silent

Rated power : 38kVA

Standby power : 41kVA

Engine Brand : FAWDE

Engine Model : 4DX22-50D-YFD10W

Generator Type : AC Single Bearing Brushless Alternator

Color : Exterior paint finish color

Noise Level : 72dB (A) @ 7m

Contact Now

FAWDE diesel generator 41kVA Chinese diesel engine generator with brushless alternator

Introducing our FAWDE TG41FWS Chinese Diesel Generator, a reliable and high-performance power solution for various applications. This generator offers exceptional features and is optimized for silent operation.

Key details:

  1. Genset Model: TG41FWS
  2. Genset Type: Silent / Super Silent
  3. Rated Voltage: 440V//415V/400V/380V/230V/220V/110V
  4. Frequency: 50Hz
  5. Speed: 1500rpm
  6. Output Type: AC Three Phase
  7. Power Factor (P.F.): 0.8
  8. Prime Output Current: 54.8A
  9. Prime Power: 30kW / 38kVA
  10. Standby Power: 33kW / 41kVA

FAWDE Diesel Generator 41kVA Chinese Diesel Engine Generator With Brushless Alternator

41kVA FAWDE Diesel Generator Specifications:

FAWDE Diesel Generator Technical Datasheets
Genset model TG41FWS
Genset Type Silent / Super Silent
Rated Voltage 440V//415V/400V/380V/230V/220V/110V
Frequency 50Hz
Speed 1500rpm
Output Type AC Three Phase
P.F(COS) P.F. 0.8
Prime Output Current 54.8A
Prime Power 30kW / 38kVA
Standby Power 33kW / 41kVA
Diesel Engine Brand FAWDE
Model 4DX22-50D-YFD10W
AC Alternator Brand Tecgen Power
Model TGI184S30
Genset Controller Brand DEIF
Model SGC-420
Genset Weight 950kgs
Genset Dimensions L2300 * W 1000 * 1200
Fuel Tank Capacity 8 running hours
FAWDE Diesel Engine Data
Brand FAWDE
Engine Model 4DX22-50D-YFD10W
Number of Cylinders 4 Cylinder in Line
Cycle 4-troke
Aspiration Turbocharged
Displacement 3.86L
Compression ratio 17:1
Bore×Stroke 102*118mm
Speed 1500rpm
Prime Power 37kW
Standby Power 41kW
Speed Governor MECH or Electrical
Cooling System Forced water cooling cycle
Starting system DC Motor
Fuel Consumption at 100% Load 230g/kwh@1500rpm
AC Alternator Data
Brand Tecgen Power
Model TGI184S30
Frequency/speed 50HZ/1500RPM
Rate Output 30kW
No. of Phase 3 Phase, 4 Wire
Exciter type Single bearing, Brushless, Self-excited with AVR
Power factor 0.8
Insulation Grade H
Protection Grade IP23
Working Condition Below 1000m
Bearing Single
Coupling Direct
Voltage adjust range ≥5%
Voltage regulation NL-FL ≤±1%
Genset Controller System
Controller System Brand DEIF
Model SGC-420
Functions Auto Mains (Utility) Failure
Static with auto. battery charger
Emergency stop push button
ATS & RS485 Connection
CAN Functions
Diesel Generator Set Output ranges & Brand Options
Prime Power (kW) Diesel Engine AC Alternator Controller Type
8kW ~ 2400kW Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin

Leroy Somer /

Stamford /

Mecc Alte /

Tecgen

 DEIF Open/Silent
7kW ~ 320kW Yangdong / FAWDE / Quanchai / YTO Tecgen Smartgen
11kW ~ 104kW Beinei Aircooled Tecgen
10kW ~ 300kW Weifang Ricardo Stamford DEEPSEA
6.8kW ~ 2000kW Caterpillar Caterpillar Caterpillar
6.8kW ~ 2000kW FG Wilson FG Wilson FG Wilson
17kW ~ 30kW Isuzu Mecc Alte ComAp
210kW ~ 818kW VMAN Tecgen Tecegn
6kW ~ 2000kW Chinese Engines Smartgen

Key Components:

  • Diesel Engine:
    • Brand: FAWDE
    • Model: 4DX22-50D-YFD10W
    • Number of Cylinders: 4 Cylinder in Line
    • Cycle: 4-stroke
    • Aspiration: Turbocharged
    • Displacement: 3.86L
    • Compression Ratio: 17:1
    • Bore×Stroke: 102*118mm
    • Speed: 1500rpm
    • Prime Power: 37kW
    • Standby Power: 41kW
  • AC Alternator:
    • Brand: Tecgen Power
    • Model: TGI184S30
    • Frequency/Speed: 50Hz/1500rpm
    • Rated Output: 30kW
    • No. of Phase: 3 Phase, 4 Wire
    • Exciter Type: Single bearing, Brushless, Self-excited with AVR
    • Power Factor: 0.8
    • Insulation Grade: H
    • Protection Grade: IP23
    • Working Condition: Below 1000m
    • Bearing: Single
    • Coupling: Direct
    • Voltage Adjust Range: ≥5%
    • Voltage Regulation NL-FL: ≤±1%
  • Genset Controller:
    • Brand: DEIF
    • Model: SGC-420
    • Functions: Auto Mains (Utility) Failure, Static with auto. battery charger, Emergency stop push button, ATS & RS485 Connection, CAN Functions

FAWDE Diesel Generator 41kVA Chinese Diesel Engine Generator With Brushless Alternator

Other Specifications:

  • Genset Weight: 950kgs
  • Genset Dimensions: L2300 * W 1000 * 1200
  • Fuel Tank Capacity: 8 running hours

Our FAWDE TG41FWS Chinese Diesel Generator stands out as a reliable and efficient power solution. With its advanced features and robust components, it ensures a continuous power supply in various settings. Experience the excellence of FAWDE Generator technology for your power needs.
