120kW Diesel Generator Silent Yuchai Genset 1800rpm For Outdoor Backup Use

Product Categories
FUJIAN TECGEN POWER CO., LTD.
Contact Now

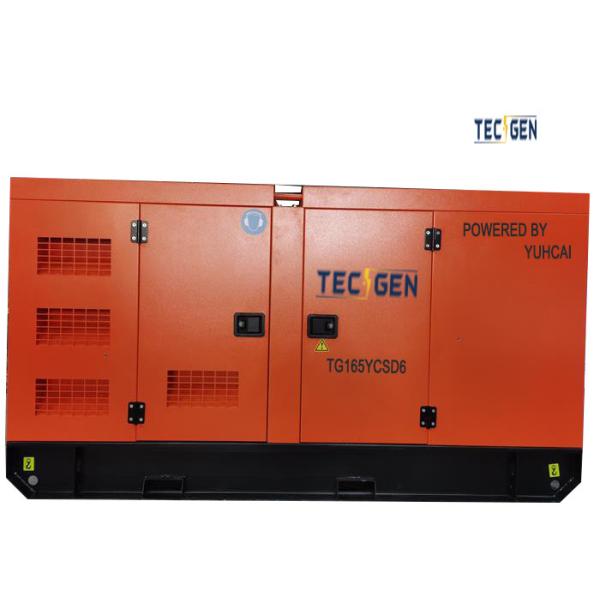

120kW Diesel Generator Silent Yuchai Genset 1800rpm For Outdoor Backup Use

  • 1
  • 2
  • 3

Brand Name : Tecgen Power

Model Number : TG165YCSD6

Certification : CE

Place of Origin : Fuzhou, China

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 100 Units Per Month

Delivery Time : 7 - 15 Working Days

Packaging Details : Stretch film packaging

Type : Soundproof Unit

Frequency : 60Hz

Rate Speed : 1800RPM

Voltage : 480V

Engine : Yuchai YC6B210L-D20

Alternator : Stamford UCI 274F

Engine Type : 6 Cylinder, Turbocharged

Alternator Type : AC, Single Bearing, Brushless

Contact Now

120kW diesel generator silent Yuchai genset 1800rpm for outdoor backup use

Product Description: 132kW Yuchai Generator Set

Introducing our backup 132kW Yuchai gensett, a robust and reliable power solution designed for outdoor use. Yuchai generator offers superior performance and silent operation, making it the perfect choice for your industrial and commercial needs.

Key Features of Yuchai Genset:

  • Powerful Backup: With a standby power of 132kW/165kVA and a prime power of 120kW/150kVA, it ensures reliable power backup during emergencies.
  • Silent Operation: Its silent design minimizes noise output, making it suitable for noise-sensitive environments.
  • Advanced Controller: Equipped with a DEIF SGC-420 controller for precise and reliable generator control.

Standard Features

  • Efficient Engine: Powered by the YC6B210L-D20 engine, it ensures smooth and consistent performance.
  • High-Quality Generator: Stamford UCI 274F generator for dependable power output.
  • Electronic Speed Control: For precise adjustment of generator speed.
  • Durable Components: Includes a 50-degree water tank, 24V maintenance-free lead-acid battery, battery rack, and an 8-hour running fuel tank.

120kW Diesel Generator Silent Yuchai Genset 1800rpm For Outdoor Backup Use

60Hz 120kW Yuchai Genset Technical Specifications:

Technical Parameter for Yuchai Genset Genset Model TG165YCSD6
Prime Power 120kW/150kVA
Standby Power 132kW/165kVA
Frequency 60Hz
Rated Voltage 480V
Power Factor 0.8
Governor Electric
Noise level (7m) 70db(A)
Engine Brand Yuchai
Engine Model YC6B210L-D20
Alternator Brand Stamford
Alternator Brand UCI 274F
Dimension Open: L2450 x W900 x H1400mm
Silent: L3000 x W1100 x H1600
Fuel Tank Capacity 250L
Engine General Data Engine Brand Yuchai
Engine Model YC6B210L-D20
Rated Output 138kW
Rated Speed 1800rpm
Number of Cylinders 6
Cylinder arrangement In-line
Displacement (L) 6
Aspiration Turbocharged
Bore×Stroke (mm×mm) 108x132
Compression Ratio 17:1
Cooling Forced Water Cooled
Fuel Consumption at 100% load(L/H) 31
Alternator Data Model Stamford
Brand UCI 274F
Rate Output 128kW
Frequency 60Hz
Altitude ≤1000
Insulation Class H
Bearing Single
Voltage Regulator AVR
Protection Grade IP 23
Steady StateVoltage Regulater 1%
Opetion Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator

Control System

 Brand DEIF
Model SGC-420
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS & RS485 Connection
Optional brands Deepsea, ComAp, Mebay
Battery Capacity 12/24V Varta Maintenance free Battery
Cooling System Water-cooled, 50℃ radiator with Cooper
Circuit breaker Delixi Brand 300A Breaker
Auto Transfer Switch 300A ATS Box
Genset Options Output Socket
Super Silent Canopy for Genset
Sync Panel
Water Heater & Engine Heater
Engine Brand Options
Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine

120kW Diesel Generator Silent Yuchai Genset 1800rpm For Outdoor Backup Use

Options:

  • ATS (Automatic Transfer Switch): Seamless power transition in case of outages.
  • Built-In Fuel Tank: For extended operation without frequent refills.
  • Water Jacket Heater: Ensures efficient engine start-up in cold weather.
  • Oil-Water Separator: Improves fuel efficiency and engine lifespan.
  • Output Switch: Convenient for controlling power distribution.
  • 3000-Hour Spare Parts Kit: Ensures timely replacements and uninterrupted operation.
  • Optional Engine Brands: Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine.

FAQ

Q: What is the prime power rating of this generator set?
A: The prime power rating is 120kW/150kVA.

Q: Does the generator set come with a silent design?
A: Yes, it is specifically designed for outdoor use with silent features.

Q: Can I add a water jacket heater to this generator set?
A: Yes, a water jacket heater is an optional extra that can be added for efficient engine start-up in cold conditions.
