Chinese Diesel Generators 60kVA FAWDE Generator With 160A Wall-mounted ATS Box

Product Categories
FUJIAN TECGEN POWER CO., LTD.
Contact Now

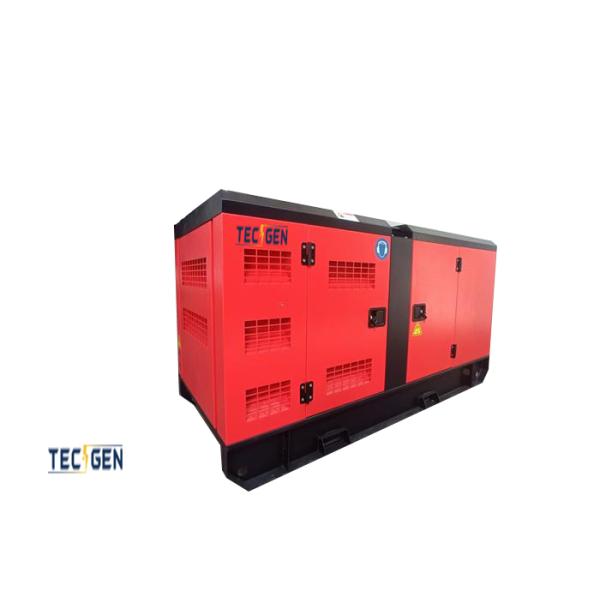

Chinese Diesel Generators 60kVA FAWDE Generator With 160A Wall-mounted ATS Box

  • 1
  • 2
  • 3

Brand Name : Tecgen Power

Model Number : TG66FWSD6

Certification : CE / SASO / SONCAP / COC / PVOC

Place of Origin : Fuzhou, China

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 500 Units Per Month

Delivery Time : 20 Days

Packaging Details : Stretch film packaging

Type : Silent Canopy

Output Type : AC Three Phase

Genset Output : 220V / 240V / 277V / 480V

Engine Brand : FAWDE

Alternator : Leroy Somer Brushless, Self Exciting

Governing Type : Mech or Electric

Prime Output : 48kW / 60kVA

ATS : 160A Wall-mounted ATS Box

Contact Now

Chinese diesel generators 60kVA FAWDE generator with 160A Wall-mounted ATS Box

Introducing the robust 48kW FAWDE Generator, a powerhouse designed to meet your varying energy needs. With its impressive specifications, this generator is a must-have for commercial, industrial, and construction applications.

Standard Features

  • Powerful Engine: Equipped with a FAWDE 4DX23-82D-YFD10W, 4-cylinder, 4-stroke turbocharged and intercooled engine.
  • Efficient Generator: Leroy Somer TAL-A42-H generator ensures stable and reliable power output.
  • Intelligent Control: Comes with a ComAp AMF 9 controller for precise and responsive speed control.

Key Features

  • Robust Construction: Built to last, with industrial-grade components that ensure long-term durability.
  • Versatile Options: Choose from a range of configurations, including open-frame, soundproof, ultra-soundproof, and trailer-mounted models.
  • Flexible Power Output: With a rated power of 48kW/60kVA and a standby power of 53kW/66kVA, it can handle varying loads with ease.

Chinese Diesel Generators 60kVA FAWDE Generator With 160A Wall-mounted ATS Box

60kVA FAWDE Generator General Datasheets:

Technical Specification:
60kVA FAWDE Generator Specification
Genset Model TG66FWD6 TG66FWSD6
Open Silent
Frequency 60Hz
Rate Speed 1800RPM
Voltage 240V
Phase 3 Phase, 4 or 12 Wires
Rate Current 144.3A
Prime Power 48kW / 60kVA
Standby Power 53kW / 66kVA
Engine Model FAWDE 4DX23-82D-YFD10W
Alternator Model Leroy Somer TAL-A42-H
Controller ComAp AMF9
Noise Level 65 dB(A) @ 7m
FAWDE Generator Weight & Dimensions
Length (mm) 1750 2150
Width (mm) 870 1050
Height (mm) 1360 1500
Weight (kgs) 1000 1400
FAWDE Engine Specifications
Brand FAWDE
Engine Model 4DX23-82D-YFD10W
Standby power 66kW
Injection Indirect
Aspiration Turbocharged & Inter-cooled
No. of cylinders 4
Speed 1800RPM
Bore of Stroke (mm) 102 x 118
Displacement (L) 3.86
Cooling Water Cooled
Compression Ratio 17:1
Engine Oil capacity (L) 29
Coolant Capacity ( In radiator) 29
Governor MECH or Electric
Air Filter Dry Element
Fuel consumption @ 60Hz
100% Load (L/h) 13.7
75% Load (L/h) 10.3
50% Load (L/h) 6.8
25% Load (L/h) 3.4
Leroy Somer Alternator Specification
Brand Leroy Somer
Model TAL-A42-H
Rate Output 50kW
Speed 1800RPM
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing Single
ComAp Controller System
Brand ComAp
Model AMF9
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
CANBUS & MPU VERSION
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts

Usage

Ideal for use in construction sites, factories, hospitals, and other critical applications where reliable power is paramount.

Optional Configurations

  • ATS Boxes: Choose from built-in or wall-mounted ATS boxes for seamless power switching.
  • Extended Features: Enhance your generator with features like a large fuel tank, remote monitoring, and more.

Chinese Diesel Generators 60kVA FAWDE Generator With 160A Wall-mounted ATS Box

Advantages

  • High Efficiency: Optimized design ensures maximum fuel efficiency and lower operating costs.
  • Easy Maintenance: 24V maintenance-free lead-acid battery, battery rack, and Delixi circuit breaker make maintenance a breeze.
  • Comprehensive Warranty: Enjoy peace of mind with our 18-month or 1500-hour after-sales service guarantee.

FAQ

  • Can I customize the generator to my specific needs? Yes, we offer a wide range of customization options to suit your unique requirements.
  • What is the factory's annual production capacity? Our factory has a capacity to produce 5000 units annually, ensuring timely delivery and scalability.

With its robust construction, impressive power output, and flexible customization options, the FAWDE Diesel Generator is the ultimate choice for reliable and efficient power generation. Contact us today to learn more about this powerful machine and how it can power your critical applications.

All stand machine can install wheel. It depends on your requirements. If we done this, the machine can move around easily.
